PRODUCT INFORMATION

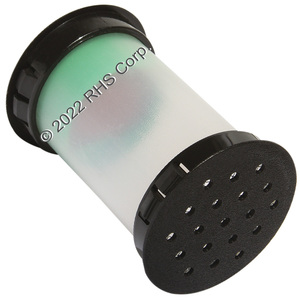

PRESSURE RELIEF PORT FOR REACH-IN COLLERS AND FREEZERS.
DESIGNED FOR WALLS UP TO 3" THICK. 2" DIAMETER HOLE

INCLUDES ALL PARTS NEEDED:
TWO BLACK FACE CAPS, 2 ALUMINUM SCREENS, TUBE, DIAPHRAGM CUP WITH SILICONE DIAPHRAGM ATTACHED.

************************************************************************************
INSTALLATION:
1) DRILL 2" DIAMETER HOLE THROUGH THE WALL OF UNIT
2) CUT TUBING (IF NECESSARY) 1/8" SHORTER THAN WALL THICKNESS.
3) INSERT SCREENS INTO FACE CAPS
4) INSERT DIAPHRAGM CUP FLUSH INTO FACE CAP
5) INSERT TUBE INTO REMAINING FACE CAP
6) INSTALL FACE CAP WITH TUBE INTO WALL FROM INSIDE OF UNIT (WILL SNAP INTO PLACE)
7) SNAP FACE CAP WITH DIAPHRAGM CUP INTO WALL ON OUTSIDE OF UNIT

NOTE: HINGED PORTION OF SILICONE DIAPHRAGM SHOULD BE ORIENTED TOWARDS TOP
